Optical Design
Photonway Technology have made various kinds of optical designs and proposals to our customers for a long period of time such as imaging, illumination and scan optics.
From optical design phase to volume production, we provide thorough supports to our customers in order to help them realizing products.
Our experienced engineers will learn customers’ required specifications (resolution, beam diameter, brightness, illuminance unevenness, layout restrictions…) and application requests, then we provide our proposals and solutions including optical design.
Then in cooperation with our processing and manufacturing departments, the design will be reviewed under manufacturing feasibilities, including productivity, tolerances, materials and cost.

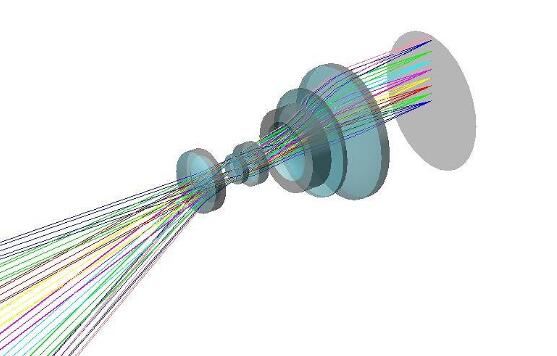

Imaging optical design/analysis cases:
Imaging lens
Scanning optics for laser beam printer
Optical systems for high power laser
Optical systems for optical communication
Illumination optics design/analysis cases:
Various Illumination Lenses
Projection optics for sensors
Light source optics for projector
Lens Arrays
We can help jump start your project and bring your design to life within a short prototyping cycle of 7-8 weeks.
Our solution is highly DFM driven, ensuring the design meets actual production yield & feasibility in your go-to-market strategies.
Photonway Technology work process for typical optical design process:
- 1-2 weeks – preliminary design development and review
- 4-8 weeks – prototyping and assembly
- 1 week – final testing and inspection
