Telecentric Lenses

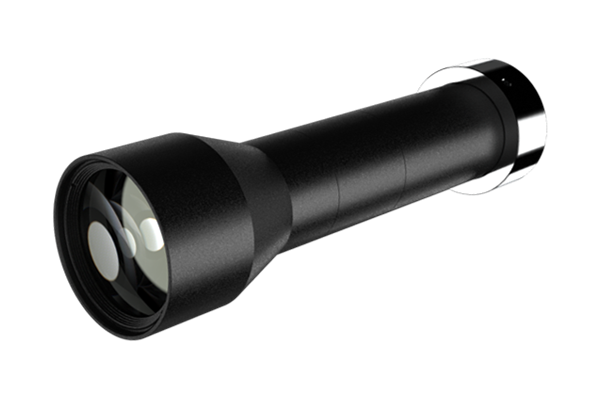

Telecentric Lenses

  • High telecentricity, ultra-low distortion, high cost performance
  • High resolution
  • Supports various formats camera
  • Adopt double telecentric (object side, image side) design
  • Proprietary identification of features such as integrated circuits, glass, LCD panels, etc.
  • For automated high speed operation


Telecentric lenses is mainly designed to correct the parallax of traditional industrial lenses. It can keep the magnification of the obtained image within a certain object distance range without changing. This is a very important application when the measured object is not on the same object surface.

No matter where you are at a specific working distance, you will have the same magnification after refocusing, because the maximum field of view of a telecentric lens is directly related to the closeness of the lens’s aperture. The larger the lens size, the larger the field required. big. The telecentric measurement lens can provide superior image quality with smaller distortion than traditional fixed focus lenses. This optical design makes the image plane more symmetrical and can be used with software for precise measurement.

Telecentric Lenses Application
Metrology, CCD-based Measurements, Microcrystallinology

We keep standing stock of common models. The order will be shiped within 1-2 days.
For customized projects, the design cycle is about one month, and prototype takes about 45-60 days.

Please contact our sales engineers to get the latest line scan lens product list.
We will recommend the lens that best suits your application requirements.
